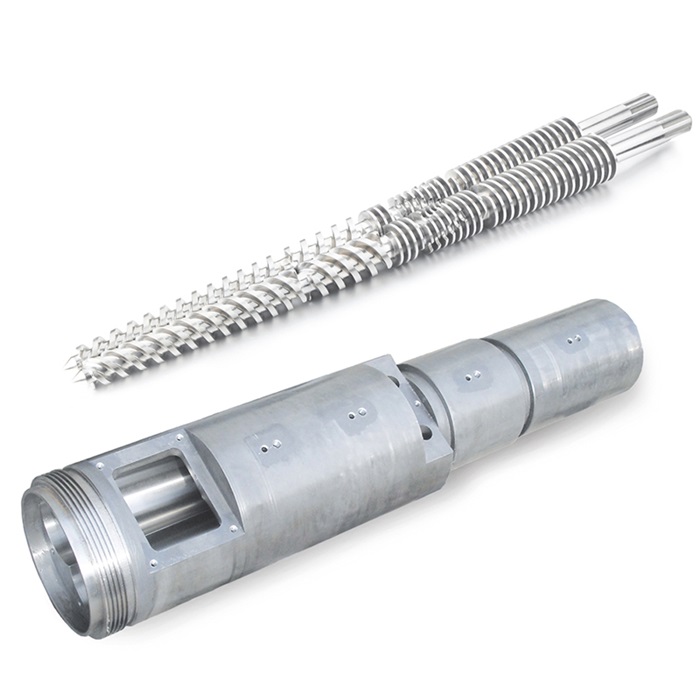

Twin Screw Machine

Product: Conical twin screw barrel

Material: 38CrMoAIA/SACM645/AISI4140

/SKD61/etc

Nitriding depth: 03.5-0.8mm

Alloy depth: 2.0-3.0mm

Quenching hardness: HRC55-62

Surface roughness:Ra0.4

Screw straightness: 0.015mm

Origin: China

Availability:

Product Description

Specification:

For good plasticizing effect, we have different designs of screw and barrel for extruder or injection to meet customer’s demand.Our factory manufactures with high-quality material, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness. We can produce for Haitian, Chenhsong, Demag, Engle, Nigrobossi, KMD, NPM, BOY, HUSKY, Nippon Steel, Toshiba, Nissei, Mitsubishi, CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO, WEBER, AMUT and so on.


Conical twin screw barrel size

Φ22/45

Φ35/75

Φ40/80

Φ45/90

Φ45/97

Φ50/105

Φ51/105

Φ55/110

Φ60/125

Φ65/120

Φ65/132

Φ70/143

Φ70/150

Φ80/143

Φ80/156

Φ90/188

Φ92/188

Φ95/190

Φ105/191

Φ100/200

1. The above is standard sizes, if your screw barrel size didn’t mentioned above, please contact me & we will give you best solution for it!

2. We provide Cincinnati, Battenfeld, Krauss Maffei, Amut, BAUSANO, Weber designing.


Conical twin screw barrel application

1) PVC pipe extrusion line;                        2) PVC sheet extrusion line;

3) PVC & WPC profile extrusion line;       4) PVC granulation line;

5) PVC foaming production line;

The raw material can be new and recycle, the material can compound calcium powder 5% – 300%.

Technical Parameter

Base Material

1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JIS SKD-11) ;
3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI 4140)

Bimetallic Alloy Materials

1)Fe-based alloy  2)Ni-based alloy/Deloro alloy
3)Co-based alloy  4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide

Double-alloy level

Level A – containing Tungsten of 40%
Level B – containing tungsten of 25%
Level C – containing tungsten of 15%

Surface Treatment

Heat Treatment
High Frequency Treatment
Nitriding treatment(120 Hours):
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 900-1020Hv (HRC56°-65°)
Hard Chrome Plating treatment:
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Hardness of Hard Chrome Plating Layer: ≥950HV
Nickel alloy plating.treatment:
Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy)
Bimetallic Screw: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-72°
Spraying corrosion wear-resisting dual metal layers

Basic information

Roughness of the surface:Ra0.4um
Linearity of the screw: ≤0.015mm
Linear axis limit: ≤0.02mm
Hardness after Hardening & Tempering: HB240-280
Fragility of Nitration:≤Two class

Material Application

1)General Plastics
2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc
3)PA + GF(Glass Fiber)
4)Flame-resistant Reinforced Plastics
5)Modified Engineering Plastics
6)All kinds of Mixed Recycled Material(in Scrap or Granule), PVC + 30% CaCo3, etc
