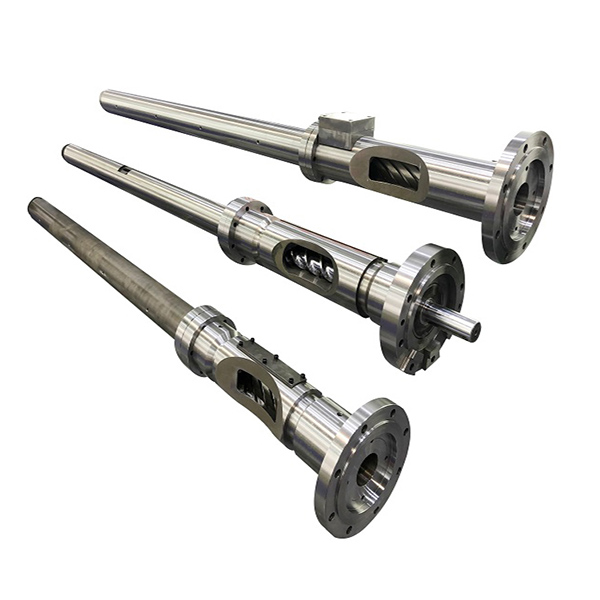

For good plasticizing effect, we have different designs of screw and barrel for extruder or injection to meet customer’s demand.Our factory manufactures with high-quality material, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness. We can produce for Haitian, Chenhsong, Demag, Engle, Nigrobossi, KMD, NPM, BOY, HUSKY, Nippon Steel, Toshiba, Nissei, Mitsubishi, CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO, WEBER, AMUT and so on.
Extruder screw diameter: 15 – 300 MM
LD for extruder screw: 1:5 – 1:65
Extruder barrel OD: 20-500 MM
1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JIS SKD-11) ;
Bimetallic Alloy Materials
1)Fe-based alloy 2)Ni-based alloy/Deloro alloy
Level A – containing Tungsten of 40%
Roughness of the surface:Ra0.4um
1. Standard grade: 38CrMoAlA + nitriding 96 hours
2. Bimetallic grade: 38CrMoAlA + bimetallic alloy
5)Various high quality alloy steels,According to different usage, the choose for alloy is different, some require for abrasion-resistant while some require for corrsion-resistant. For standard, we have Fe-based, Ni-based,W2Calloy,Tunsten alloy etc for choice.
6)The foreign material we used as following:
*Germanysteel, GH113 ,2250 ,2842 ,1.8509 ,1.442 ,1.6582 ,1.6523 ,1.2080,1.4542,
*USA steel, P20,420,L6,H13,W110,D3,A2,D6,O1,S1,M35,8620,3115,K52440
*Sweden steel, 718S,718H,S136,S136H,STAVAX,ASP-23,ASP-30
*Australia Steel, M202,M300,W302,K460,W300,K900,K100,W321
*Hardness steel, YG6X,YG 6A,YG 6,YG8N,YG8,YG8C,YG11C,YG 15,YT5,YT14,YT30
*Japan Steel, SKT 4,YXM 4,YXM 42,SNC 815,SK -3,SKS 3,and etc.
We would like to go forward with all of the customers, to make the bimetallic screw barrel with highest wearing resistance in China.
