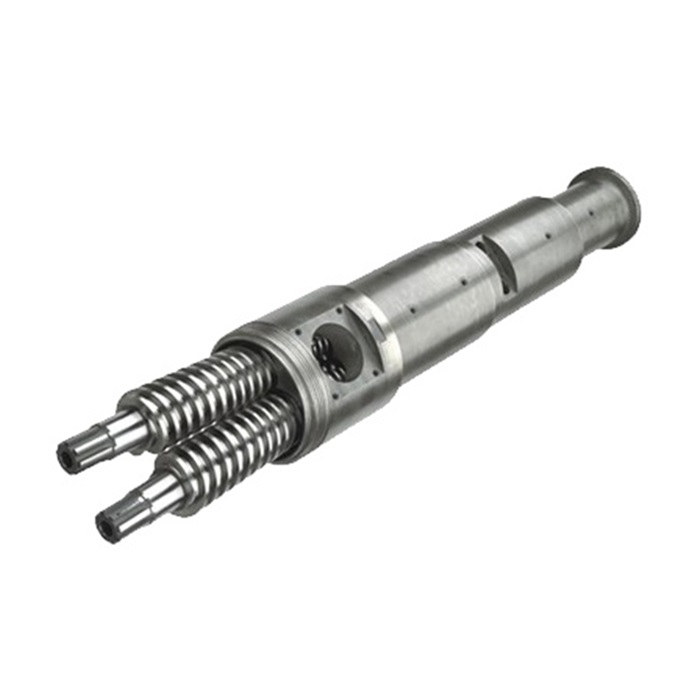

Product: Conical twin screw barrel
Nitriding depth: 03.5-0.8mm
Alloy depth: 2.0-3.0mm
Quenching hardness: HRC55-62
Screw straightness: 0.015mm
For good plasticizing effect, we have different designs of screw and barrel for extruder or injection to meet customer’s demand.Our factory manufactures with high-quality material, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness. We can produce for Haitian, Chenhsong, Demag, Engle, Nigrobossi, KMD, NPM, BOY, HUSKY, Nippon Steel, Toshiba, Nissei, Mitsubishi, CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO, WEBER, AMUT and so on.
Conical twin screw barrel size
1. The above is standard sizes, if your screw barrel size didn’t mentioned above, please contact me & we will give you best solution for it!
2. We provide Cincinnati, Battenfeld, Krauss Maffei, Amut, BAUSANO, Weber designing.
Conical twin screw barrel application
1) PVC pipe extrusion line; 2) PVC sheet extrusion line;
3) PVC & WPC profile extrusion line; 4) PVC granulation line;
5) PVC foaming production line;
The raw material can be new and recycle, the material can compound calcium powder 5% – 300%.
1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JIS SKD-11) ;
Bimetallic Alloy Materials
1)Fe-based alloy 2)Ni-based alloy/Deloro alloy
Level A – containing Tungsten of 40%
Roughness of the surface:Ra0.4um
We would like to go forward with all of the customers, to make the bimetallic screw barrel with highest wearing resistance in China.
