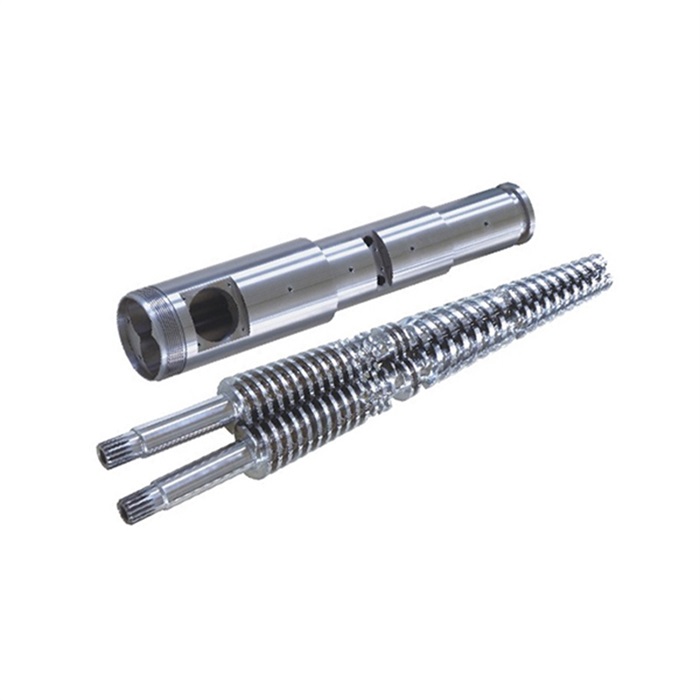

Conical Extruder

Φ22/45

Φ35/75

Φ40/80

Φ45/90

Φ45/97

Φ50/105

Φ51/105

Φ55/110

Φ60/125

Φ65/120

Φ65/132

Φ70/143

Φ70/150

Φ80/143

Φ80/156

Φ90/188

Φ92/188

Φ95/190

Φ105/191

Φ100/200

1. The above is standard sizes, if your screw barrel size didn’t mentioned above, please contact me & we will give you best solution for it!

2. We provide Cincinnati, Battenfeld, Krauss Maffei, Amut, BAUSANO, Weber designing.

1) PVC pipe extrusion line;                        2) PVC sheet extrusion line;

3) PVC & WPC profile extrusion line;       4) PVC granulation line;

5) PVC foaming production line;

The raw material can be new and recycle, the material can compound calcium powder 5% – 300%.

Technical Parameter

Base Material

1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JIS SKD-11) ;
3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI 4140)

Bimetallic Alloy Materials

1)Fe-based alloy  2)Ni-based alloy/Deloro alloy
3)Co-based alloy  4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide

Double-alloy level

Level A – containing Tungsten of 40%
Level B – containing tungsten of 25%
Level C – containing tungsten of 15%

Surface Treatment

Heat Treatment
High Frequency Treatment
Nitriding treatment(120 Hours):
Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 900-1020Hv (HRC56°-65°)
Hard Chrome Plating treatment:
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Hardness of Hard Chrome Plating Layer: ≥950HV
Nickel alloy plating.treatment:
Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy)
Bimetallic Screw: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-72°
Spraying corrosion wear-resisting dual metal layers

Basic information

Roughness of the surface:Ra0.4um
Linearity of the screw: ≤0.015mm
Linear axis limit: ≤0.02mm
Hardness after Hardening & Tempering: HB240-280
Fragility of Nitration:≤Two class

Material Application

1)General Plastics
2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc
3)PA + GF(Glass Fiber)
4)Flame-resistant Reinforced Plastics
5)Modified Engineering Plastics
6)All kinds of Mixed Recycled Material(in Scrap or Granule), PVC + 30% CaCo3, etc
